In semiconductor manufacturing, a chemical distribution system need to do greater than transport chemicals from storage to the factor of usage. It should maintain ultra-high purity, offer consistent flow and pressure, protect personnel and devices, and stay available with marginal disturbance. As semiconductor procedures end up being increasingly sensitive to contamination and procedure variation, high uptime becomes an essential layout purpose for UHP chemical delivery systems.
A high-uptime system integrates equipment redundancy, continual surveillance, automation, effective isolation, preventative upkeep, and thoroughly selected parts. These aspects work together to lower unintended downtime while preserving reputable chemical delivery throughout requiring production operations.
Redundancy for Constant Chemical Accessibility
Redundancy is among one of the most crucial concepts in developing a high-availability UHP chemical distribution system. Critical components such as pumps, shutoffs, sensing units, power supplies, and control components can be configured with back-up capacity so that a solitary element failing does not necessarily quit manufacturing.
As an example, repetitive pumping arrangements can permit a standby pump to take control of when the main pump requires upkeep. Similarly, redundant instrumentation can give an added measurement resource if a sensing unit stops working. The appropriate degree of redundancy depends on chemical attributes, procedure needs, manufacturing ability, and the consequences of devices failing.
Redundancy should likewise reach crucial utilities and control facilities where useful. Back-up power, reputable communication networks, and fault-tolerant control style can help stop relatively little tools problems from coming to be production-wide interruptions.
Tracking and Automation for Early Issue Detection
Continual surveillance allows drivers to determine uncommon conditions before they become major failings. A contemporary UHP chemical distribution system can monitor parameters such as pressure, flow rate, fluid level, temperature level, valve condition, and leakage problems.
Automated alarms can alert drivers when dimensions relocate outside predefined operating limits. Advanced systems can make use of programmable logic controllers and supervisory control systems to assess numerous criteria concurrently and launch predefined reactions.
Automation can additionally boost repeatability. Instead of depending greatly on manual shutoff procedure or chemical transfer procedures, automated sequences can manage filling up, transfer, flushing, isolation, and various other procedures according to well established procedure reasoning. This reduces driver irregularity while improving process uniformity and traceability. To know more at https://www.chengweisemi.com/product/.
Isolation Design for Safer Maintenance

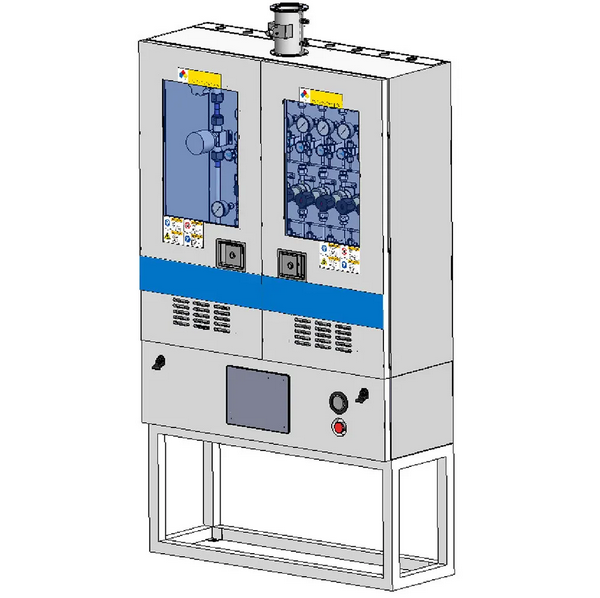

Effective UHP Chemical Dedelivery Cabinet isolation is vital for preserving uptime due to the fact that upkeep tasks need to not unnecessarily interfere with the entire chemical distribution network. Shutoff manifolds, seclusion valves, and specialized process areas can allow service technicians to isolate individual elements or branches while various other components of the system continue running.
A properly designed isolation technique should take into consideration both security and operational connection. Upkeep employees need clear means of separating equipment from chemical sources before examination or replacement. At the same time, the system must be configured to ensure that prepared maintenance can be done without causing preventable disruptions to unconnected manufacturing devices.
Correct seclusion additionally supports troubleshooting. When stress, flow, or leak abnormalities take place, individual areas can be separated to assist determine the affected part or piping section extra efficiently.
Preventive Maintenance and Condition-Based Methods
High uptime can not depend solely on replying to failures after they take place. Precautionary maintenance assists identify wear, destruction, and efficiency modifications prior to they result in unforeseen downtime.
Maintenance schedules can include inspection and replacement of seals, shutoffs, filters, pumps, sensing units, and various other essential elements according to manufacturer recommendations and operating problems. Condition-based upkeep can supply added advantages by making use of system data to identify developing problems.
Steady modifications in pump performance, pressure security, flow attributes, or valve response might suggest that a component needs attention. Combining functional data with upkeep records can aid design groups establish appropriate solution intervals and focus on critical devices.
Dependable Part Option and Material Compatibility
Component option straight affects both purity and system dependability. Products that get in touch with the chemical needs to be compatible with the certain chemical being delivered and with the needed pureness degree. In many UHP applications, electropolished 316L stainless-steel piping and suitably defined wetted components are used to
sustain demanding contamination-control requirements.
Shutoffs, fittings, regulatory authorities, pumps, filters, tubing, sensors, and seals need to be picked according to chemical compatibility, pressure and temperature requirements, leakage efficiency, sanitation, and expected life span. Parts needs to also have suitable surface area coatings and manufacturing controls for the desired UHP application.
Standardizing parts where practical can simplify spare-parts management and service technician training. Nevertheless, standardization must never bypass chemical compatibility or process-specific requirements.
Final thought
Designing a high-uptime UHP chemical distribution system requires a systems-level approach. Redundancy decreases the impact of individual failures, keeping an eye on gives very early exposure right into unusual problems, automation enhances consistency, seclusion allows safer upkeep, and preventive approaches help in reducing unexpected disruptions. At the very same time, dependable and chemically compatible parts give the structure for long-lasting system efficiency.
By integrating these principles from the initial design phase, semiconductor centers can create UHP chemical shipment framework that sustains pureness, safety, operational continuity, and dependable point-of-use chemical supply.
